LTO Drives

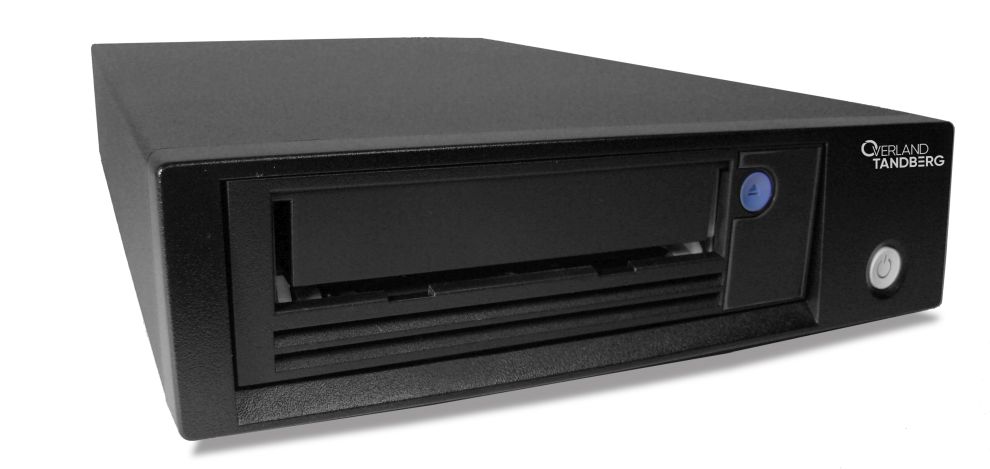

Overland-Tandberg LTO Ultrium Tape Drives

Download Datasheet

Overview

LTO (Ultrium), the most popular tape technology, is a high-performance tape technology offering versatility, reliability and performance.

When it comes to LTO, Overland-Tandberg is your go-to-source for protecting, backing up and archiving your business-critical data. Our LTO tape drives protect your server data by providing simple, affordable backup, archive and disaster recovery.

With superior performance and capacity, and available in both internal and external configurations, Overland-Tandberg LTO Ultrium tape drives are ideal for backing up and archiving data on single workstations or small networks. Features such as 256-bit Advanced Encryption
Standard (AES) ensure that data contained on the cartridges is secure for archiving and off-site transportation.

Our Linear Tape File System (LTFS) functionality, available since we shipped LTO-5, enables users to easily drag and drop files to tape just as they would with disk drives. Compatible with Windows, Linux and Mac OS environments, LTFS functionality eliminates the need for backup software and provides ease of data exchange between users.

Featured LTO Drives:

  • LTO-6 HH



  • LTO-7 HH



  • LTO-8 HH

Request More Overland-Tandberg Information

Our enterprise solution specialists are ready to answer your questions Buy Now

Comparison

  LTO-8 LTO-7 LTO-6 LTO-5
Capacity (native) 12TB 9TB 6TB 2.5TB
Capacity (compressed) 30TB 15TB 6.25TB 3.0TB
Transfer Rate (native) 300MB/s (1TB/hr.) 300MB/s (1TB/hr.) 160MB/s (576GB/hr.) 140MB/s (504GB/hr.)
Transfer Rate (compressed) 750MB/s (2.7TB/hr.) 750MB/s (2.7TB/hr.) 400MB/s (1.4TB/hr.) 280MB/s (1TB/hr.)
Interface / Connector 6Gb SAS / Int SFF 8482, Ext, SFF 8088
8GB Fibre Channel / LC Optical
Dimensions (inches)** 8.4 in. x 2.3 in. x 13.1 in. 8.4 in. x 2.3 in. x 13.1 in. 8.4 in. x 2.3 in. x 13.1 in. 8.4 in. x 2.3 in. x 13.1 in.
Read/Write Compatibility Write: LTO-7
Read: LTO-7
Write: LTO-7, LTO-6
Read: LTO-7, LTO-6, LTO-5
Write: LTO-6, LTO-5
Read: LTO-6, LTO-5, LTO-4
Write: LTO-5, LTO-4
Read: LTO-5, LTO-4, LTO-3
MTBF (Mean Time Between Failure) 250,000 hours @ 100% duty cycle 250,000 hours @ 100% duty cycle 250,000 hours @ 100% duty cycle 250,000 hours @ 100% duty cycle
Buffer Size 1024MB 1024MB 512MB 256MB
Desktop Weight 9.4 lbs 9.4 lbs 9.4 lbs 9.4 lbs
Data Rate Matching (native) 112-365MB/s 80-300MB/s 40-160MB/s 40-140MB/s
Power Consumption (maximum) 30 watts 24 watts 24 watts 24 watts
Temperature (operating) 50°-105°F
10°-40°C
50°-105°F
10°-40°C
50°-105°F
10°-40°C
50°-105°F
10°-40°C
Humidity (operating) 20-80% (non-condensing) 20-80% (non-condensing) 20-80% (non-condensing) 20-80% (non-condensing)
Standard Warranty 3-year bronze advanced exchange 3-year bronze advanced exchange 3-year bronze advanced exchange 3-year bronze advanced exchange

** external
